Icon Design Guide
Here are rules that should be followed to keep quality and consistency when making icons for Lucide.
Summary of the rules we have
- Each Icon is desined on a canvas of 24 by 24 pixels.
- Each Icon have 1 pixel padding between icon and the canvas.
- Each icon has a stroke width of 2 pixels.
- Each icon has round joins.
- Each icon has round caps.
- Each icon has centered strokes.
- Each icon containing squares has a border radius of 2 pixels.
- Each icon 2 pixels of spacing between elements.
The Rules Visualized
1. Each Icon is desined on a canvas of 24 by 24 pixels

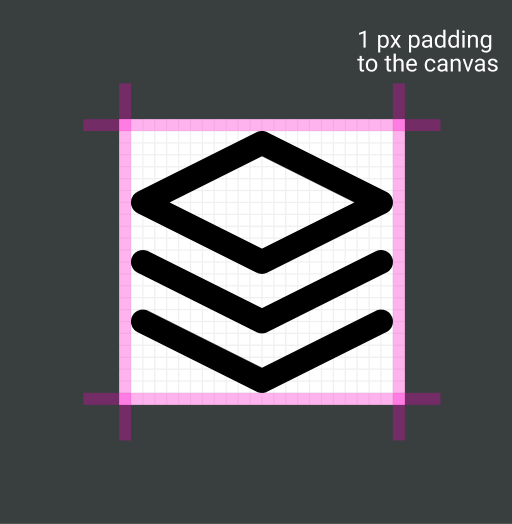

2. Each Icon have 1 pixel between icon and the canvas

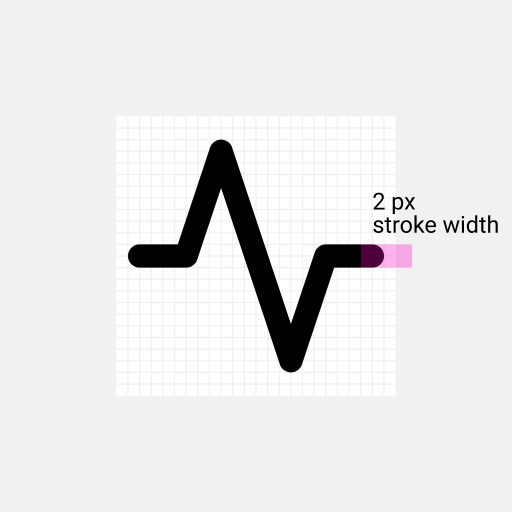

3. Each icon has a stroke width of 2 pixels
4. Each icon has round joins
5. Each icon has round caps

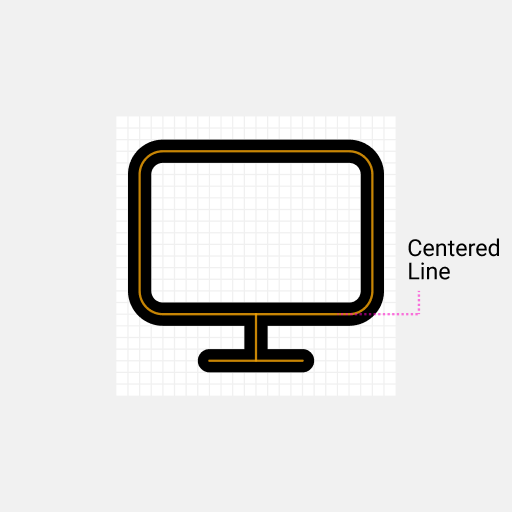

6. Each icon has centered strokes
7. Each icon containing squares has a border radius of 2 pixels

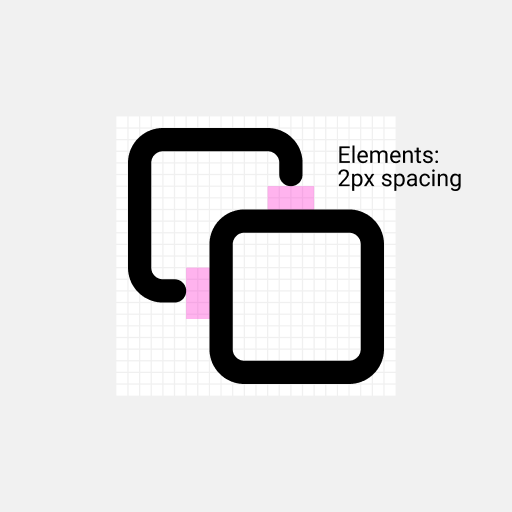

8. Each icon 2 pixels of spaciong between elements
Code Conventions
Before an icon is added to the library, we like to have readable and optimized svg code.
Global Attributes
For each icon these attributes are applied.
<svg
xmlns="http://www.w3.org/2000/svg"
width="24"
height="24"
viewBox="0 0 24 24"
fill="none"
stroke="currentColor"
stroke-width="2"
stroke-linecap="round"
stroke-linejoin="round"
>
<!-- SVGElements -->
</svg>
Minify paths
Code of paths can get really big. To reduce file size we like to minify the code. We recommend to use the SVGOMG to minify paths.
